Securing Cable Reliability with the TH-5806 Series Bending Tester

n modern industrial applications, cables are subjected to relentless physical stress. Whether used in robotics, automation, or moving machinery, these cables bend, flex, and move continuously. Over time, this repetitive motion can cause internal wires to fray or snap, leading to short circuits, equipment downtime, and significant financial losses. To ensure long-lasting performance, manufacturers must test their cables against harsh conditions before they ever hit the market.

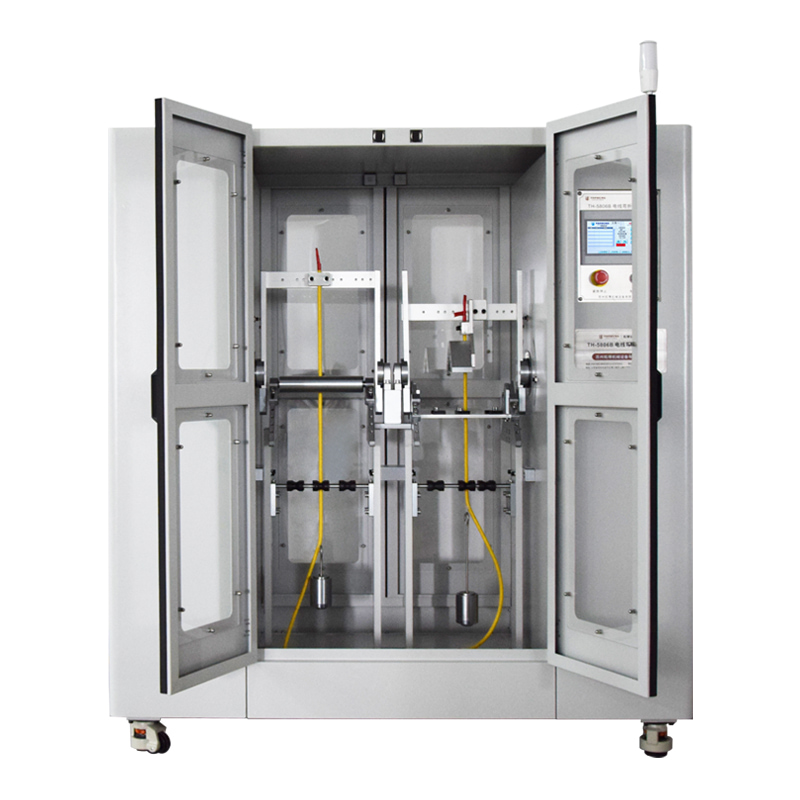

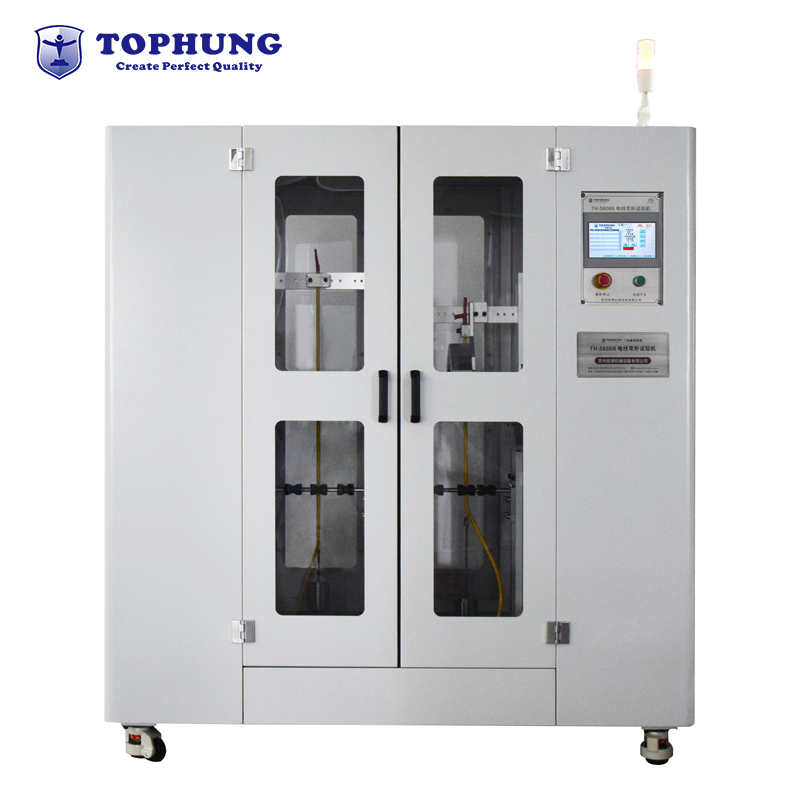

This is where precise testing equipment comes into play. The Cable Bending Testing Machine, specifically the TH-5806 series, is designed to evaluate the physical endurance of highly flexible cables under extreme, repetitive bending scenarios.

Why Bending Tests Are Crucial for Cable Longevity

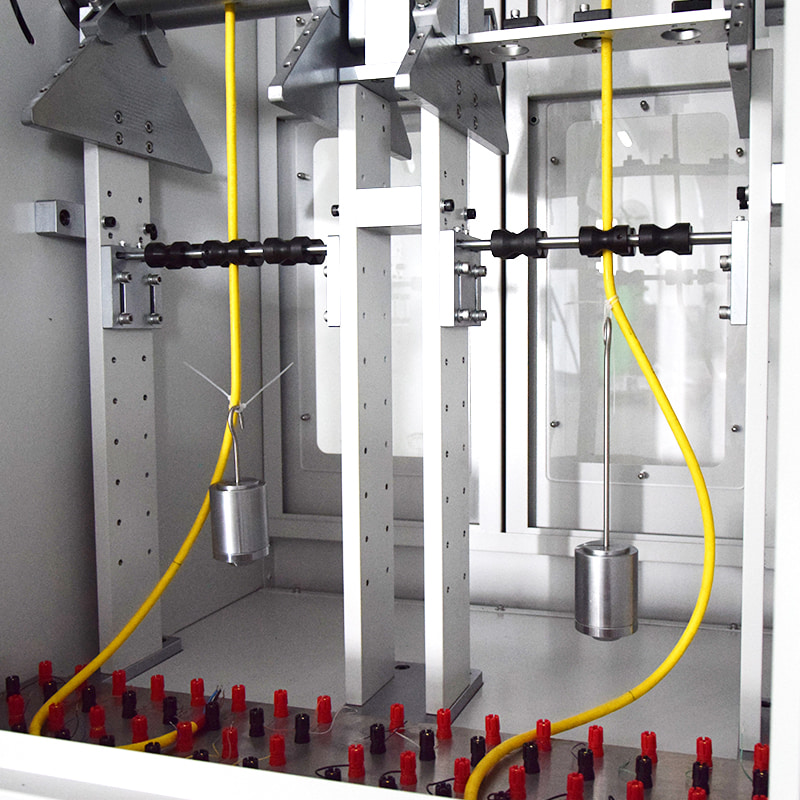

High-flex cables need to meet rigorous international quality standards. The Cable Bending Testing Machine is engineered specifically to fulfill testing requirements for TUV, VDE, UL, IEC, and other key certifications. It operates by fixing the upper end of the cable sample while attaching a weight to the lower end. The machine then bends the sample using a freely rotating roller, repeatedly stressing the wire to detect its threshold for plastic deformation and potential defects.

Key Features of the TH-5806 Series

What sets the TH-5806 series apart is its high capacity and precision:

• 6-Station Structure: Testing is highly efficient. The machine operates with a parallel 6-station structure, allowing you to test multiple cables simultaneously.

• High-Accuracy Sensors: The equipment uses high-precision sensors with a resolution of up to 1/500,000 and an original 6-point calibration technology, ensuring measurement accuracy that exceeds the national 0.5 level.

• Intelligent Safety and Monitoring: It features 30 pairs of online monitoring interfaces. If a line break occurs, the machine instantly triggers a sound and light alarm while displaying a detailed fault description on the touch screen.

• Customizable Parameters: Operators have complete control over the test. You can adjust the bending angle (0°~±120°), the bending radius (10mm~100mm), and the test speed (up to 60 cycles per minute) via the PLC touch screen. It accommodates specimen diameters ranging from 1.0mm to 40mm.


  •
  •


  •



  --------------占位---------------



Meeting Global Compliance

When exporting wire and cable products, proving compliance is non-negotiable. Using a reliable Cable Bending Testing Machine guarantees your products align with standards like TUV 2577, UL RP5770, VDE-PB-0022, and IEC60227-2. With this data in hand, manufacturers can confidently guarantee the fatigue resistance of their cables.

Are you ready to elevate your quality control process and ensure your cables can handle the toughest industrial environments?
