In the highly regulated world of industrial manufacturing and quality assurance, the physical hardware of a Universal Testing Machine (UTM) is only as good as the software that controls it. While the mechanical frame applies the physical force, the control software serves as the central nervous system—dictating precision, ensuring compliance, and translating raw mechanical reactions into authoritative, actionable data.
To empower laboratories with unparalleled analytical capabilities, Suzhou Tophung has developed the TOP-Test Material Test Special Software. Engineered specifically for evaluating the mechanical properties of diverse materials and products, TOP-Test seamlessly bridges the gap between complex metrology and user-friendly operation.

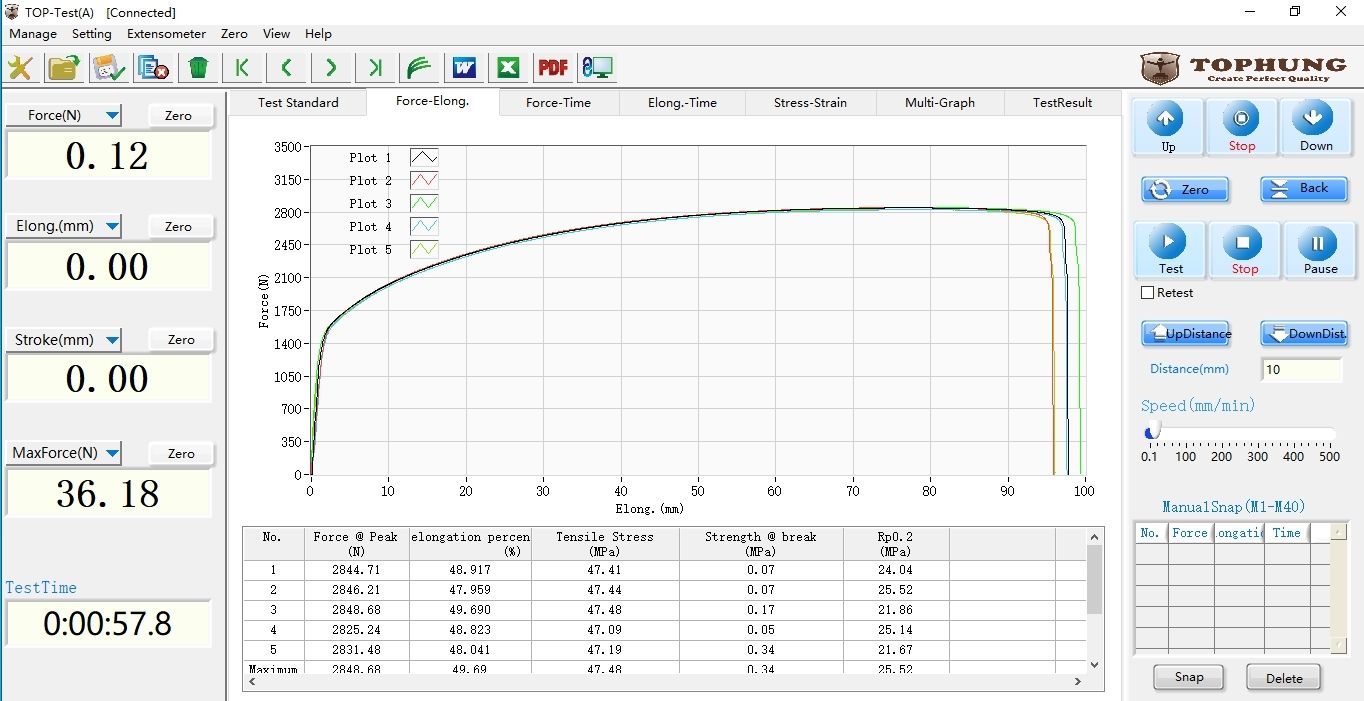

The following is the main operation interface of TOP-Test software.
TOP-Test material test special software，it is suitable for all kinds of materials, products mechanical properties test. The main interface of the test simultaneously displays: test curve, data list, real-time data, control panel and other information. Simple interface, portable operation, and support for multi-language seamless switching.

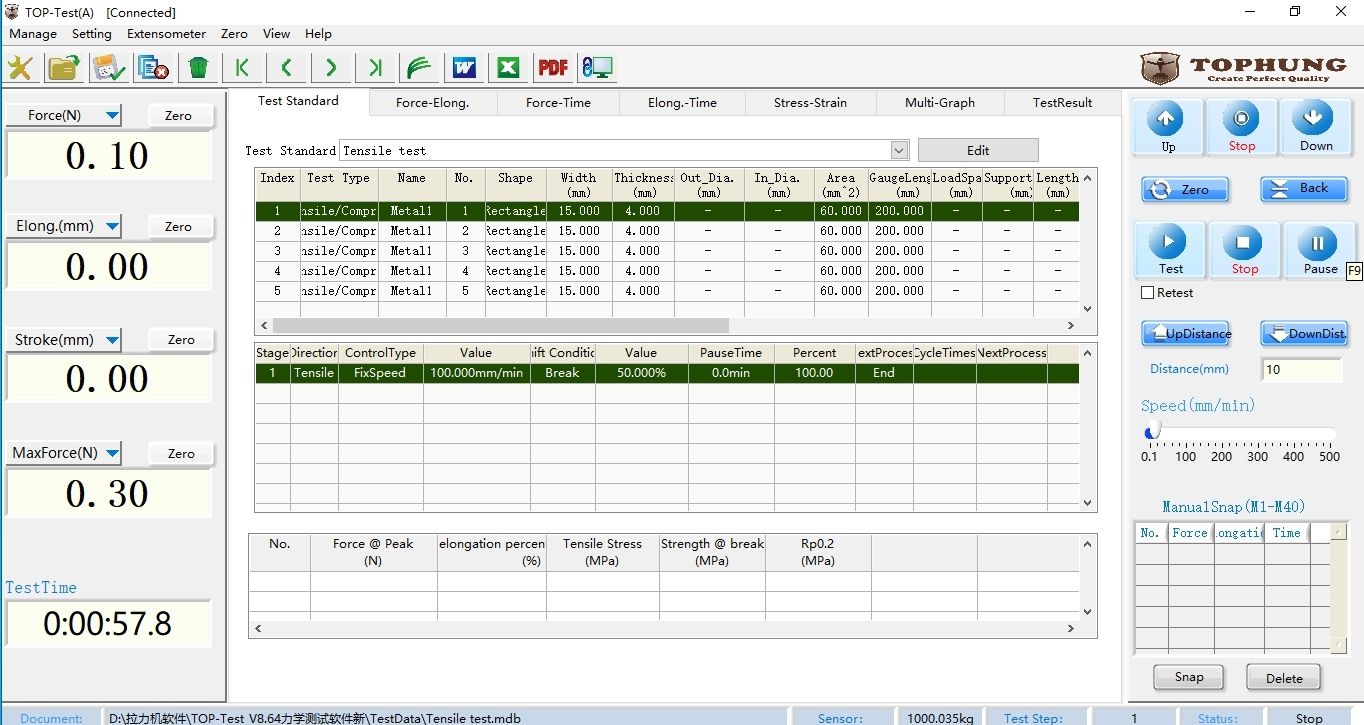

2. Standard setting interface
TOP-Test material test special software, according to the product test standards, can be set before the test sample information, the test process control mode, running speed, control conditions, and test results of the data list, data arithmetic, test report style and other information, To meet the test requirements of ISO, IEC, EN, GB, ASTM, JIS, DIN and other international general testing standards.

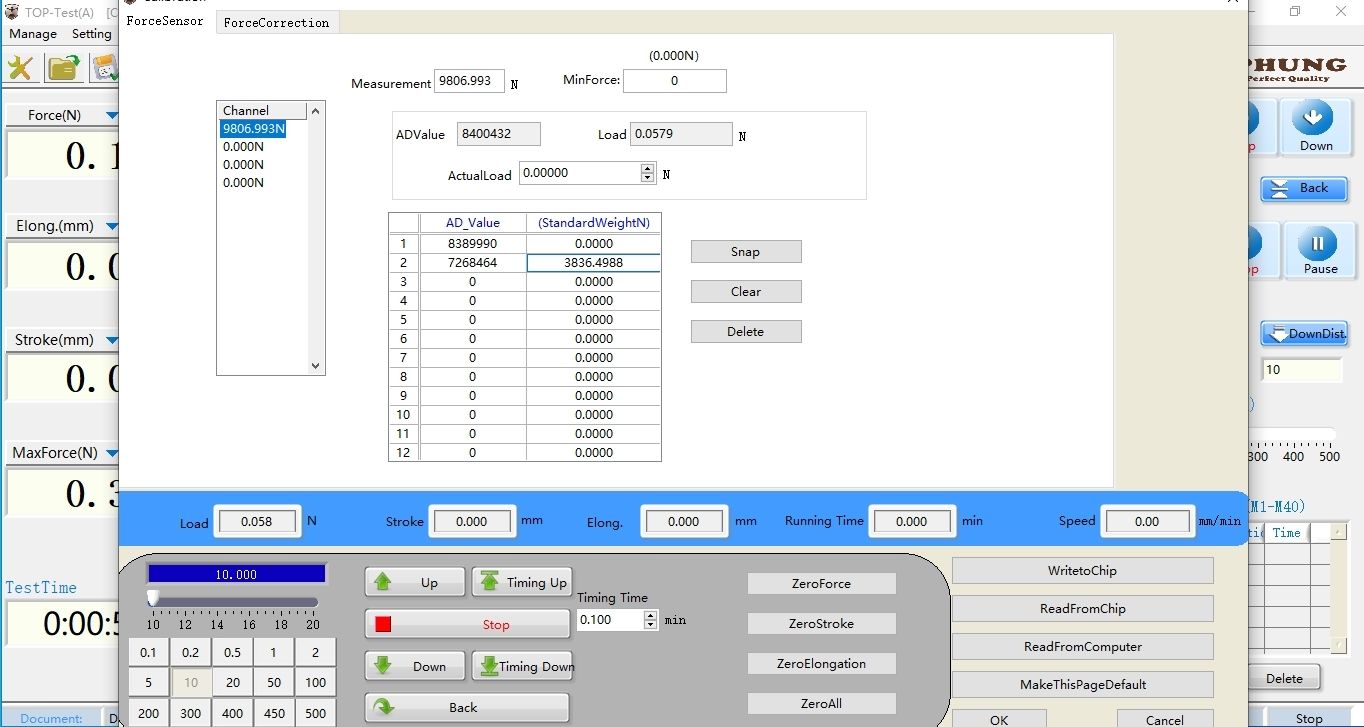

TOP-Test material test specific software, with force, displacement, velocity, deformation and other equipment calibration functions. Force calibration can simultaneously store multiple sets of calibration data for load cells, and can calibrate up to 12 segments of load cells. The force error is controlled within ± 0.5%, making the test results more accurate.

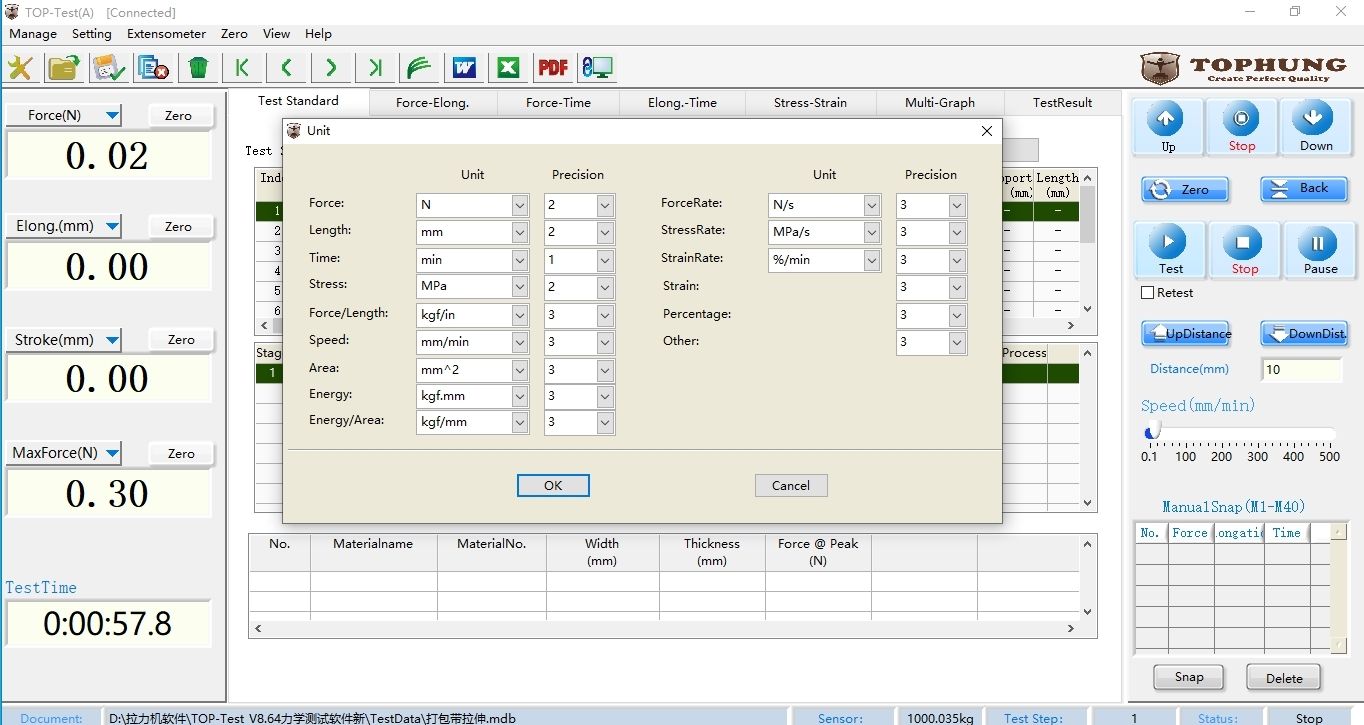

TOP-Test material test special software, with flexible unit system, strength, displacement, deformation, strength and other data are available in a variety of units to meet different testing requirements.

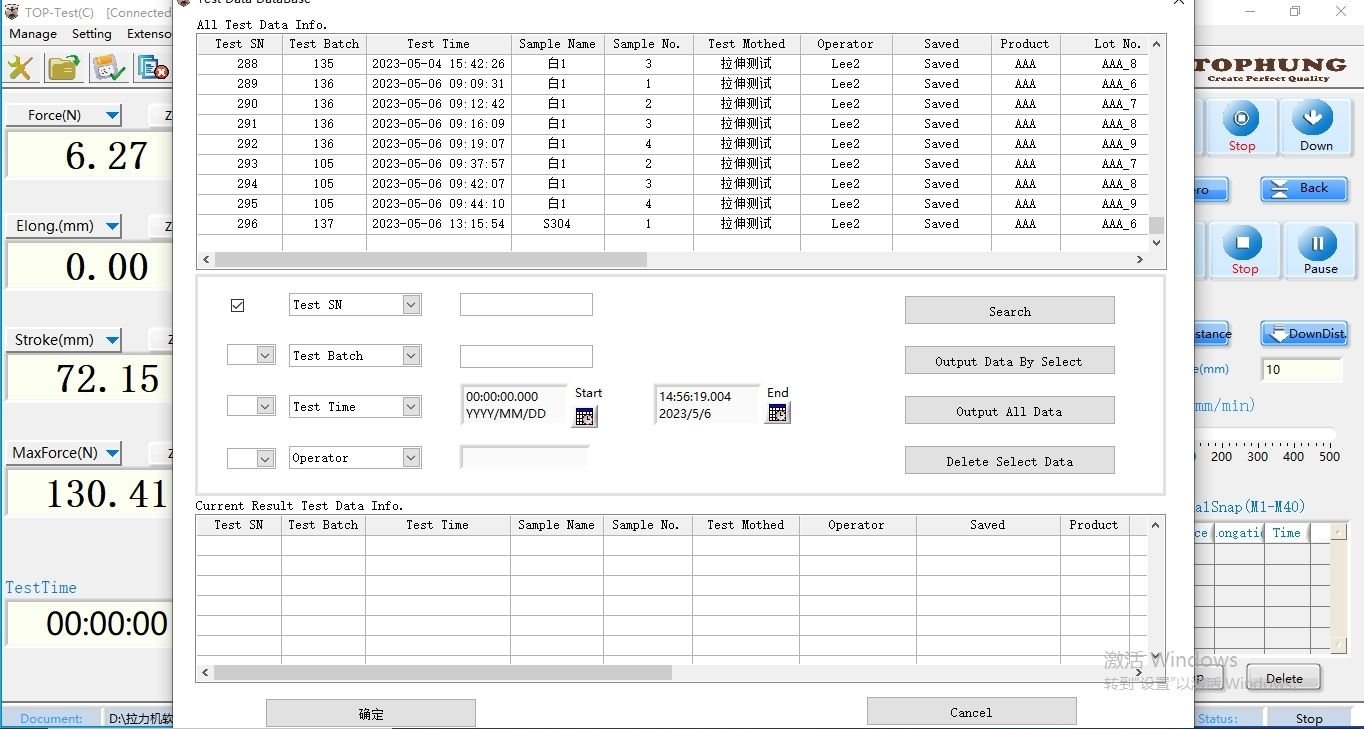

5.Data query
TOP-Test material test special software, with powerful data query function, each test data are stored in the encrypted database, users can query and output historical tests based on search criteria such as test number, batch, time, and personnel, and compare and analyze the test results horizontally/vertically.

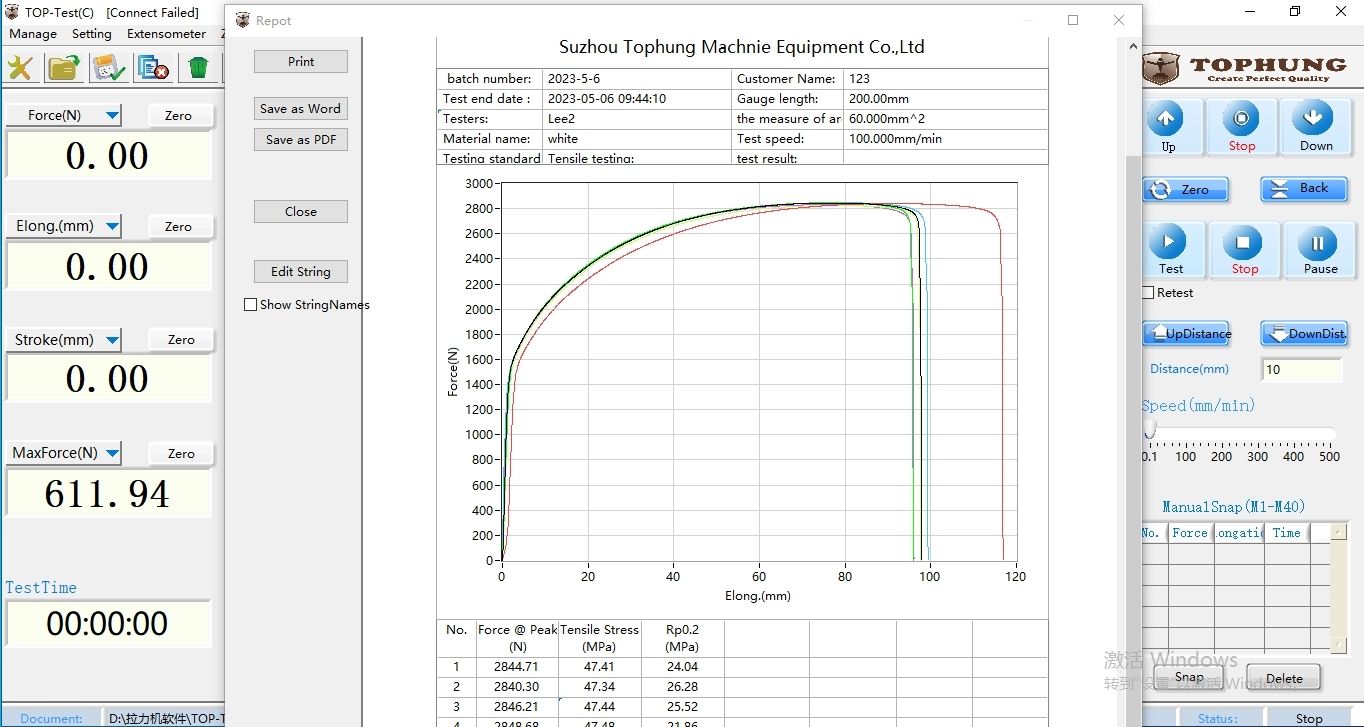

6.Report output
TOP-Test material test specific software, it adopts open test report template, users can write test report styles according to test requirements, call test result database information, and automatically generate test reports. And it can output test reports in formats such as Word, Excel, PDF, etc. The data information is complete, clear, and automatically generated.
By integrating TOP-Test software into your mechanical testing workflow, it secures absolute accuracy, effortless standard compliance, and highly secure data management.
