Dynamic mechanical load testing machine

TH-8210 series universal testing machines are designed and manufacture according to ASTM, ISO, GB and other international standards. Test item:The testing machine is mainly used for the precision mechanical test of multi-gate stripping strength such as 5-gate, 6-gate, 9-gate and 12-gate solar photovoltaic modules.Applicable industry:It is widely used in solar photovoltaic industry, colleges and universities, scientific research laboratories, commercial arbitration, technical supervision and other departments.

Test Items:The testing machine is mainly used for testing solar PV modules, adhesive products and other material samples: Tensile,Stripping,Bending,Tearing and Other precision mechanical tests.Application industry:This series of testing machines are widely used in solar photovoltaic industry, colleges and universities, scientific research laboratories, commodity inspection and arbitration, technical supervision and other departments.

TH-8211 series universal testing machines are designed and manufacture according to ASTM, ISO, GB and other international standards. Test item:This testing machine is mainly used for testing solar photovoltaic modules, adhesive products and other samples: tensile, stripping, bending, compression, tearing and other precision mechanical tests.Applicable industry:It is widely used in solar photovoltaic industry, colleges and universities, scientific research laboratories, commercial arbitration, technical supervision and other departments.

  Test item:This testing machine is mainly used for testing solar photovoltaic modules and other samples: tensile, stripping, tearing and other precision mechanical tests.Applicable industry:The testing machine is mainly used in solar photovoltaic industry, colleges and universities, scientific research laboratories, commodity inspection arbitration, technical supervision and other departments.

  Test item:This testing machine is mainly used for testing solar photovoltaic modules and other samples: tensile, stripping, tearing and other precision mechanical tests.Applicable industry:The testing machine is mainly used in solar photovoltaic industry, colleges and universities, scientific research laboratories, commodity inspection arbitration, technical supervision and other departments.

TH-6801 static mechanical load testing machine is specially designed for IEC61215 standard MQT16 clauses and IEC62782 design of a tester, the tester adopts a sandbag static mode, placed on the front and back of the component, and the surface close to the component uses TPU material, TPU material and the component forms good contact. The process of applying pressure to the front and back of the component is achieved by increasing the weight of the sandbag to different specifications. Component surface forces are uniform. Internal conductivity can be monitored in real time during component surface stress.

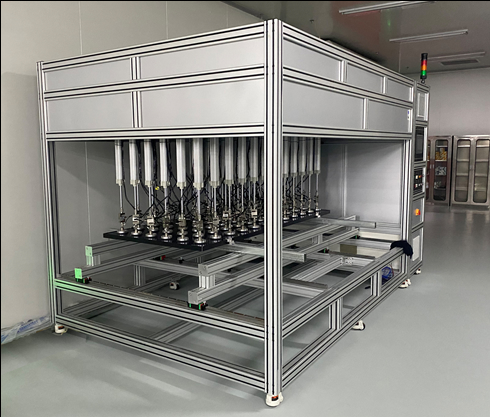

TH-6802 dynamic mechanical load testing machine adopts self-developed upper computer control software, the cylinder system, pressure sensing system, vacuum system, displacement and deformation system is efficiently and accurately combined into a whole operation, using 84 low-friction SMC(or similar brand) cylinders, each cylinder front is equipped with a high-precision tension pressure sensor. The cylinder is pushed out and acted on the surface of the component with a certain force value to realize the thrust test of the component with a certain pressure; The front end of each cylinder is equipped with a vacuum sucker with a diameter of 120mm. The vacuum system is started before the test, and the cylinder will be automatically pulled back to realize the tensile test of the component after the completion of the thrust test. This verifies the ability of components to withstand static and dynamic loads such as wind, snow or ice at different installation angles.

TH-6805 photovoltaic glass pellet impact testing machine is based on IEC61730-2 standard MST32 development of the component anti-heavy impact ability test equipment, the machine adopts a controllable lifting system, lifting the shot as the filler, glass ribbon wrapped made of impact bag, at different vertical heights free fall, generating kinetic energy on the surface of the photovoltaic component. To verify the scratch or stab risk injury test after the tempered glass is cracked by impact.

The hail impact testing machine is a hail test equipment developed based on the IEC61215 standard MQT17 clauses, through the air pressure impact of different diameter (artificial ice balls used to simulate hail) ice balls, and at constant speed impact components, simulate the impact of hail climate on components, verify the ability of components to resist hail impact.

The machine is designed and manufactured in accordance with GB/T13520. The steel ball with the specified weight is adjusted at a certain height, so that it falls freely, hits the test material, and determines the quality according to the degree of damage. It can be used to determine the impact strength of various engineering plastics on spheres and the fastness of coatings.

TH-6807 photovoltaic module wet leakage constant temperature tank is used to verify the insulation performance of photovoltaic module wet leakage test module under wet working conditions, detect whether rain, fog, dew or dissolved snow moisture enters the working part of the internal circuit of the module, causing corrosion, leakage, causing non-safety accidents, is specially designed for the solar photovoltaic module industry test device.
